Precision CNC Machined Mechanical Shaft for Industrial Drive Systems

Project Information

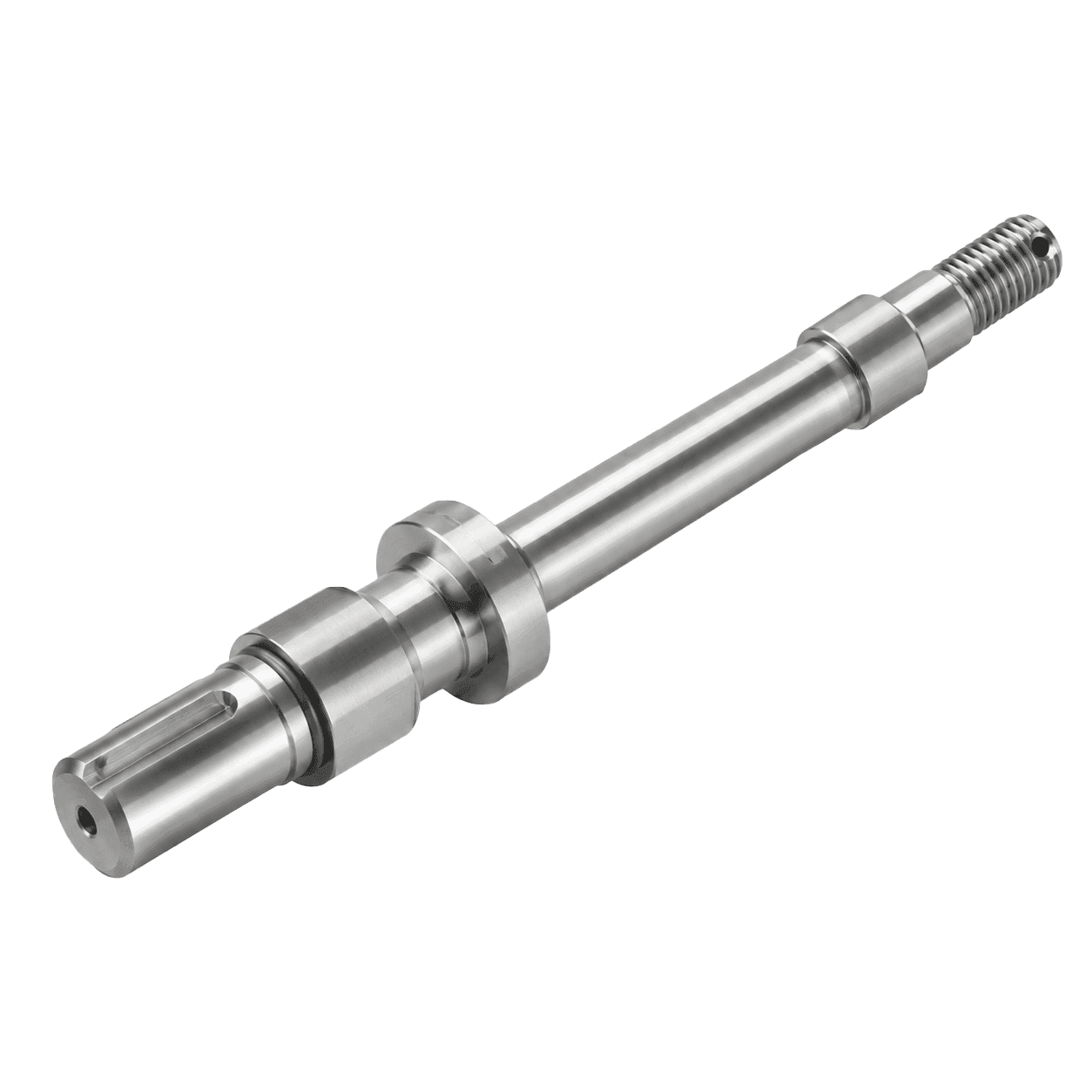

The shaft was designed to transmit rotational force between the drive motor and the mechanical assembly. Several functional surfaces had to maintain tight dimensional and positional tolerances because the shaft would be installed with bearings, gears, and couplings.

XM-19 offers a combination of high strength, excellent corrosion resistance, good wear resistance, and superior galling resistance compared with many conventional stainless steel grades, that is why we selected XM-19.

Additionally, because of XM-19's inherent properties—specifically, its difficult machinability and tendency to cause tool adhesion. Machining speeds must be carefully controlled during setup, furthermore, the cutting tool must be replaced after every 20pcs to ensure thread precision.

CNC Machining Challenge

XM-19 is a difficult material, not simply because it is stainless steel. Its combination of strength, toughness, and work hardening behavior requires the machining process to be carefully controlled.

Work Hardening

XM-19 can work harden rapidly when cutting conditions are not properly controlled.

Excessive dwell time, rubbing, or repeated passes over the same area can create a hardened surface layer, making subsequent cutting more difficult.

Our machining process therefore emphasized stable cutting conditions, proper tool engagement, and controlled feed and speed parameters.

Dimensional Stability

The shaft contained several closely related diameter features. Maintaining the relationship between the bearing seat, main shaft diameter, shoulders, and thread section was important for final assembly.

Whenever possible, critical turning features were completed in the same setup to reduce positioning errors.

Longwang CNC Machining Solution

1. Material Preparation

XM-19 stainless steel bar stock was prepared by the customer.

Material identification and incoming inspection were performed before machining to ensure the correct grade was used.

2. CNC Turning

The main geometry of the shaft was produced using CNC turning. The machining strategy was designed to minimize unnecessary repositioning and maintain concentricity between the critical cylindrical surfaces.

As required, a CNC Mill-turn machine was used to produce the keyway and other non-rotational features in one step.

The position of these features was controlled relative to the shaft centerline to ensure correct alignment with the customer's mating components.

Quality Control

As previously mentioned, to ensure the precision of the screw threads, Longwang must strictly control the timing and frequency of tool changes during the machining process. Consequently, we have established comprehensive tool management logs and change records, while also maintaining process stability through a routine inspection schedule of checking two pieces every two hours.

Why XM-19 Was Selected

XM-19, also known as Nitronic 50, is an austenitic stainless steel developed for applications requiring a combination of strength, corrosion resistance, and wear performance.

Compared with standard austenitic stainless steels such as 304 and 316, XM-19 can provide significantly higher strength while maintaining excellent corrosion resistance.

Its good galling and wear resistance also make it suitable for moving or contacting components where conventional stainless steel grades may experience accelerated wear.

For mechanical shafts operating in demanding environments, these characteristics can provide a useful balance between mechanical performance and corrosion resistance.
